PowerCad-5™ – The optimum electrical engineering design solution for consulting Engineers

Electrical Engineering Software Products


Latest News

Coming Soon
BS7671: 2008

Latest Version

5.0.78.4
8 February 2023

PowerCad- 5™ is Australia's leading electrical engineering design software solution for consulting engineers.

PowerCad- 5™ includes design methology and compliance checking with Australian and New Zealand standards AS/NZS 3000:2007 and AS/NZS 3008.1.1:2009.

For projects outside Australia, PowerCad- 5™ supports IEE, BS, CP5 and IS (India) standards.

PowerCad- 5™ enables Electrical designers the power to model complex L.V. Distribution Networks extremely quickly with accuracy.

PowerCad-5™ Features:

  • Cable Voltage Drop Calculations

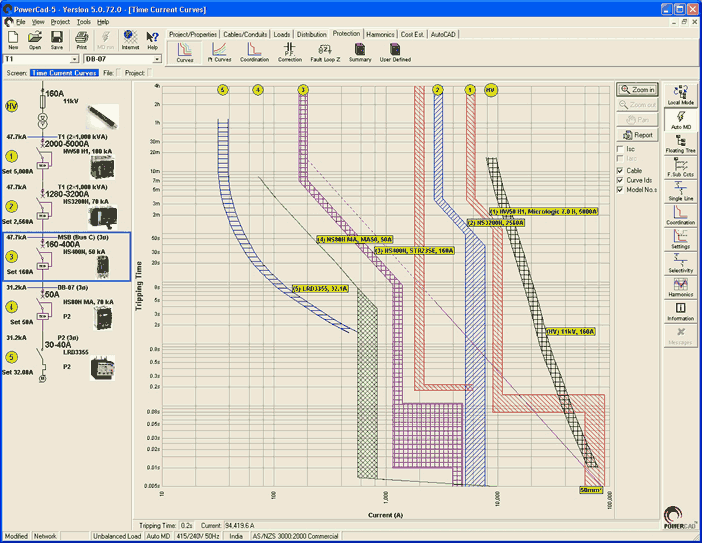

  • Time/Current Co-ordination Curves
  • Co-ordination Curve On Screen CB OCR Adjustment (dynamic)
  • User defined Time Current Curves
  • Selectivity/Cascading
  • Maximum Demand
  • Cable Thermal Stress
  • Let Through Energy
  • Cable Sizing
  • Conduit Sizing
  • Fault-loop Impedance
  • Fault Level Calculations

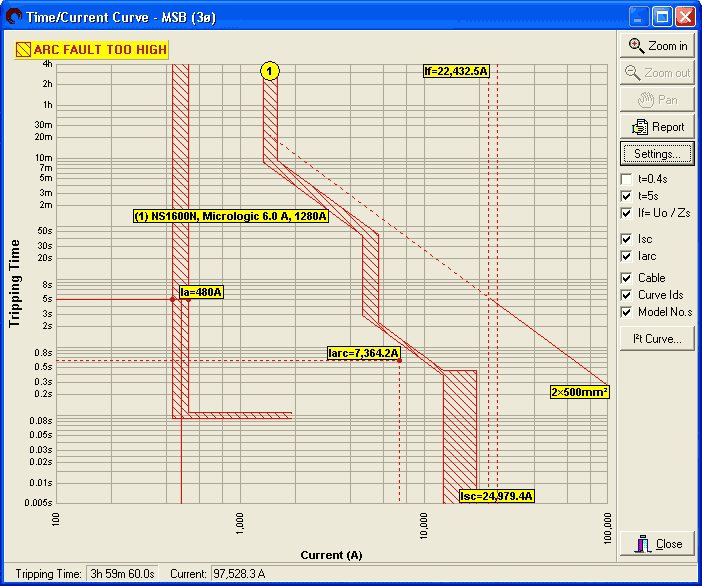

  • Arc Fault Calculations
  • Curcuit Breaker Selection
  • Single Line Diagram
  • Harmonic Mitigation
  • Power Factor Correction
  • Harmonic Analysis
  • Network Resonance

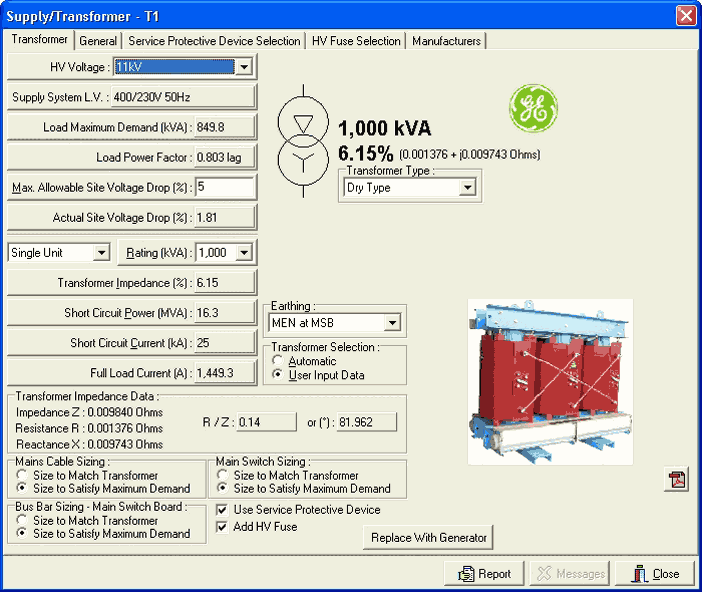

  • Substation Sizing
  • Standby Generator Sizing
  • Active Harmonic Filter Sizing
  • Passive Harmonic Filter Sizing
  • Single Line Diagram Export to AutoCAD®
  • L.V. Distribution Network Modelling
  • AutoCAD® Interface for Loads Input
  • Automatic Mains and Submains Cable Selection
  • Automatic Final Subcircuit Cable Sizing
  • Display Load Starting Current Profile
  • light Fitting and Motor Libraries
  • Reports with Print Preview
  • Direct Online Support
  • Standards AS/NZS, IEE, BS, CP5 and IS (India)
